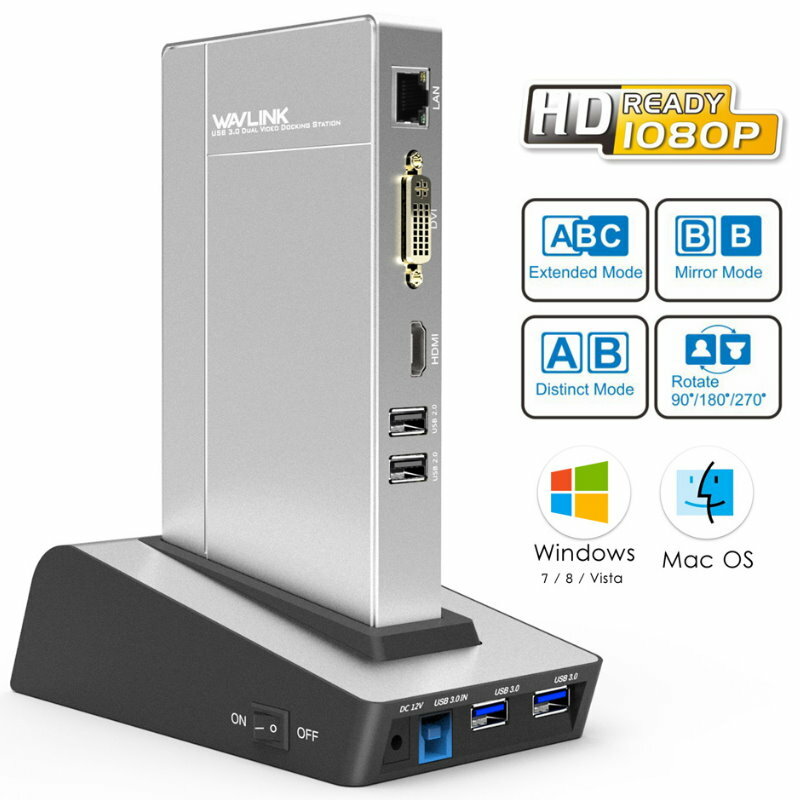

Wavlink UG39DK2 USB 3.0 Universal Laptop Docking Station
- HDMI and DVI output supports display resolutions up to 2048x1152
- Wired Ethernet port supports 10/100/1000Mbps speeds
- USB 3.0 ports backward compatible to USB specification 2.0/1.1
- USB charging ports compatible to BC1.2 specification, red clour support fast charging up to 2.4A
- Blue USB3.0 ports, black USB2.0 ports and red clour charging ports make easy to distinguish
- Dock Base provides SuperSpeed USB 3.0 (5 Gbps) link from PC to 2.5" HDD Enclosure and two USB3.0 ports
- Removable 2.5" HDD Enclosure perform as an external backup storage
- Blue power indicator light on Dock Base
- Main Dock and Dock Base both have USB3.0 USB input port and DC input jack
- DC12V/4A Power Adapter strong enough power supply to devices
- Free express post with tracking
Dual Video Monitor Supports HDMI/VGA/DVI up to 2048 *1152
15 ports of incredible connectivity give you all your needs in a sleek, individual design.
Brand NEW In Original Retail Packaging
Overview
Design For You
15 ports of incredible connectivity give you all your needs in a sleek, individual design.

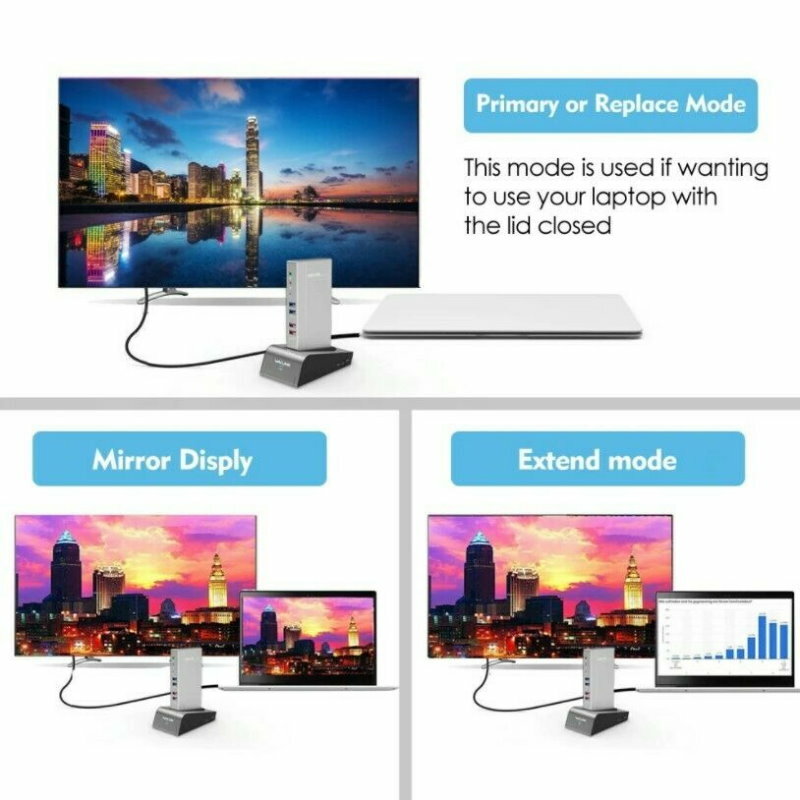

Outstanding Quality Display
One built-in HDMI and a DVI-I port that can drive a display of your choice. And with one single cable, you can easily connect your laptop to two 2048X1152 monitors. It will greatly help you facilitate high-resolution works, graphically intensive images, video editing, CAD drawings, medical imagery and more
One Cable. Two Usages
Main Dock and Dock Base either can work together or individually. Equipped with USB 3.0 input port and Power input DC jack. You can choose what you need for your best convenient experience.
Blazing-fast Gigabit Ethernet
Wired network connections are faster and more reliable than any Wi-Fi. The dock helps you tap into the full performance of wired network connections with built-in Gigabit Ethernet port.
Unlimited Storage for Your Need
With built-in removable 2.5”HDD/SSD enclosure and two USB3.0 ports , the dock base expand more storage devices to provide bigger storage for your business, suitable for IT managers, engineer etc.

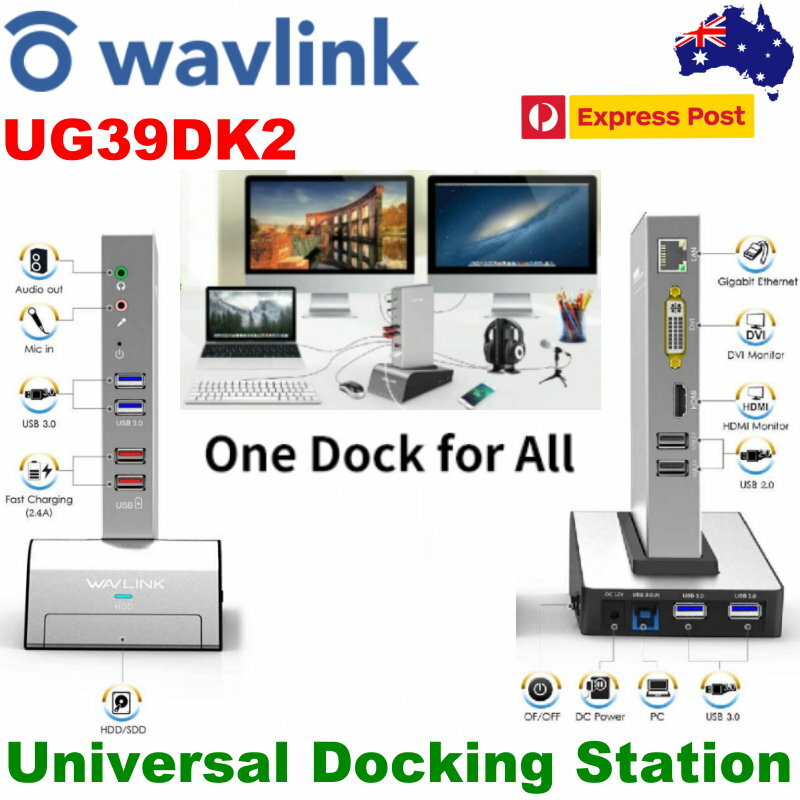

One Dock for All
The WAVLINK Universal Dock allows you to easily connect various devices at once, helping you keep your workspace organized and efficient at all times

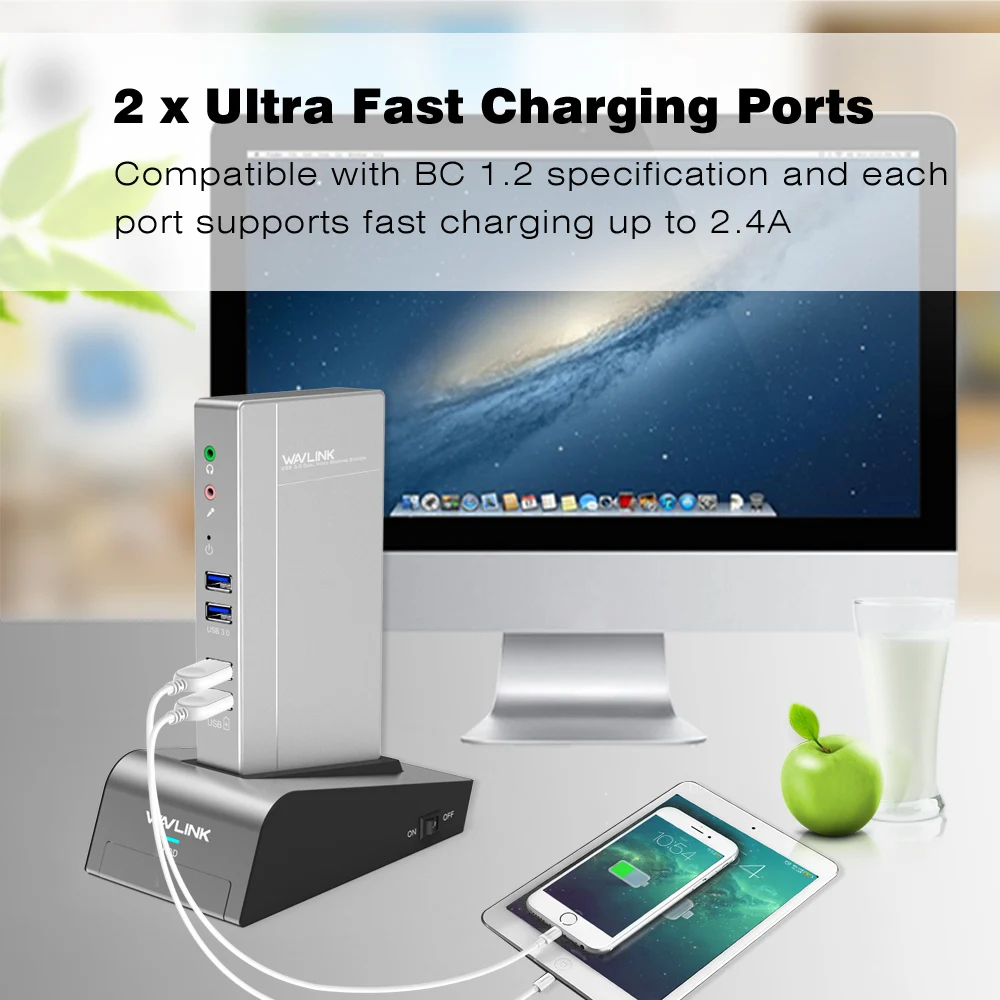

Strong Power for Fast Charging
DC12V/4A Power Adapter provide 48W stronger enough to supply devices. Two USB fast charging ports compatible to BC1.2 specification and each port support fast charging up to 2.4A
System Requirement
CPU: Intel®Core™2 Duo 2.0 GHz or better (Intel®Core™ i5 Quad Core 2.4 GHz or better recommended for video playback)
RAM: 2 GB or better (4 GB recommended for video playback)
Operating Systems Supported
Windows Vista 7/8.X (32-bit or 64-bit),Windows 10，Mac OS
Weight: 1484g
Max HDD & SSD Capacity: 2TB
Warm reminder
1. - 64-bit Editions of XP are not supported
2 .- Does not provide power to attached host laptop or tablet, the host system will still require its power cable/charger.
3 .- If 2.4Ghz wireless devices such as wireless keyboard/mouse receivers, Bluetooth and WiFi adapter do not work in the USB3.0 ports on the dock, please try using a USB 2.0 connection.
4.- Download the latest driver from DisplayLink for Windows 10, Mac OS X & Android.
5. -macOS release Version 10.13.4 will cause DisplayLink connected displays to go blank ,10.13.4 could not support .
Specs
Brand: Wavlink
Model: UG39DK2

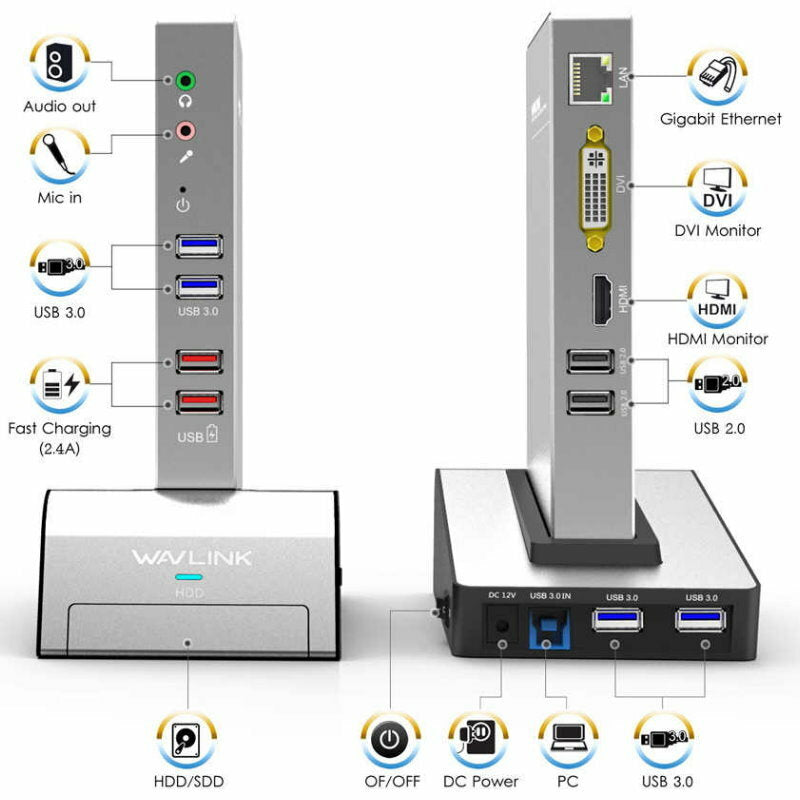

Ports:
4 x USB-A 3.0
2 x USB-A 2.0
2 x USB-A ( Fast Charging )
1 x HDMI
1 x DVI
1 x USB-B
1 x SATA
1 x Audio Output Jack
1 x Microphone Input Jack
1 x RJ45 Gigabit Ethernet
1 x DC Power Input Port
Button: 1 x Power On/Off Switch
LED: Blue
Unit Dimensions:
Dock: 170mm x 95mm x 26mm ( L x W x H )
Base: 160mm x 90mm x 50mm ( L x W x H )
Housing Material: Aluminum + ABS
Shell Color: Silver
Working Standards: USB 3.0 5Gbps, LED Indicators
Operating System Support: Windows 10Mac OS X

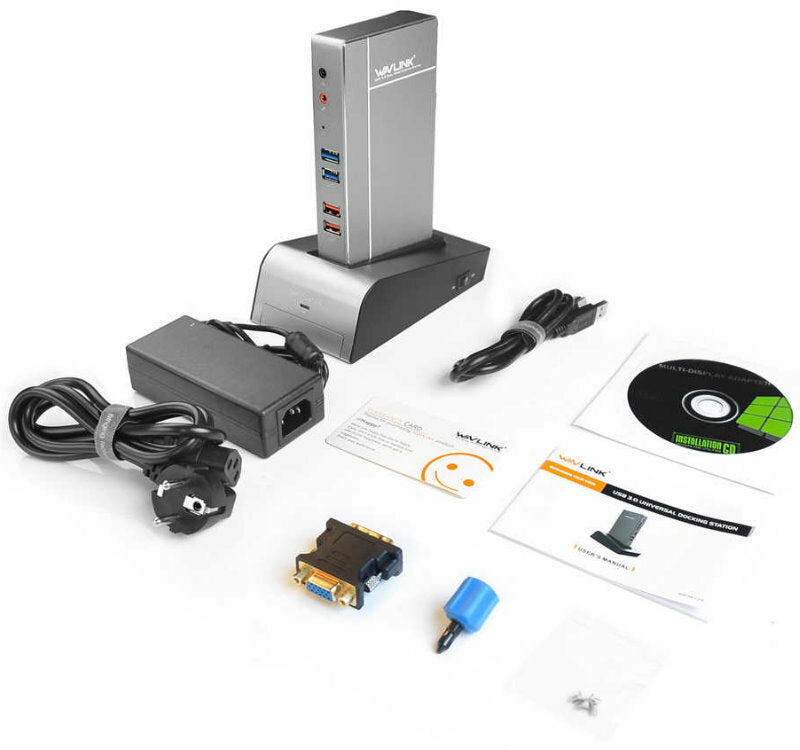

In The Box
1 x Main Dock
1 x Dock Base
1 x USB Extension Cable
1 x DVI to VGA Adapter
1 x DC12V/4A Power Adapter
1 x Screwdriver
1 x User Manual
